Home Solar System

Our Advantages

High efficiency PV Modules
One-stop solutions service
Easy to be installed
Smart control
Professional design
Help you save over 90% electricity bill

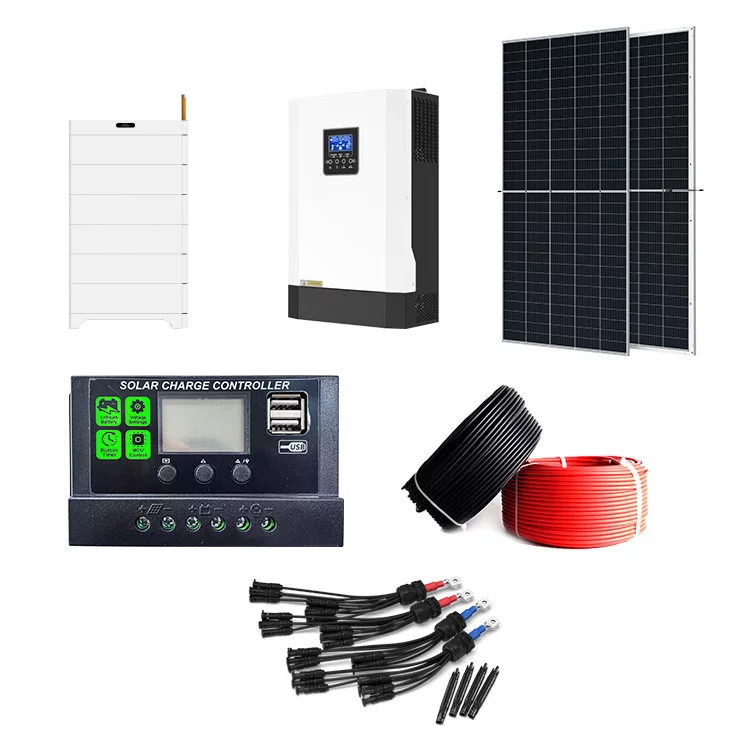

10KW off-grid solar system

Mono Solar panels
Power: 560W
Weight: 29KG
Size: 2279*1134*35MM
Warranty: 25 years
Quantity: 24 pieces

Off-grid solar inverter
Max PV input: 4.5kwp
Rated power: 5KW
MPPT work range: 120V-430VDC
System voltage: 48V
50-60HZ single phase
Output voltage: 230VAC
Quantity: 2

Battery
Type: Gel battery(Lithium battery can be chosen)
Total power store:9.6KWH
System voltage: 48V
DOD:70%
Quantity: 4
Warranty: 3 years
Controller
96V 100A

MC4 Connector
Rated current: 30A
Rated Voltage: 1000VDC
Warrant: 5 years
Quantity: 20

PV Cable
Type: PV 4mm2
Warrant: 5 years
Quantity: 200 meters

Mounting Systems
Roof/Ground
Whole set
Warranty: 2 years
Quantity: 1 set
DC combiner box (Switches, breaker,SPD)
2 Inputs 1 outputs

Maximum open circuit

Voltage: 500V

Protection level: IP65

Quantity: 2

Certification
TUV, CE, UL

SOLAR PANELS

A variety of specifications are available
156mm/158mm/166mm/182mm/210mm
Waterproof and moisture-proof, long life
High-efficiency battery, higher conversion rate
Multiple processes for quality control
Source factory, support processing customization

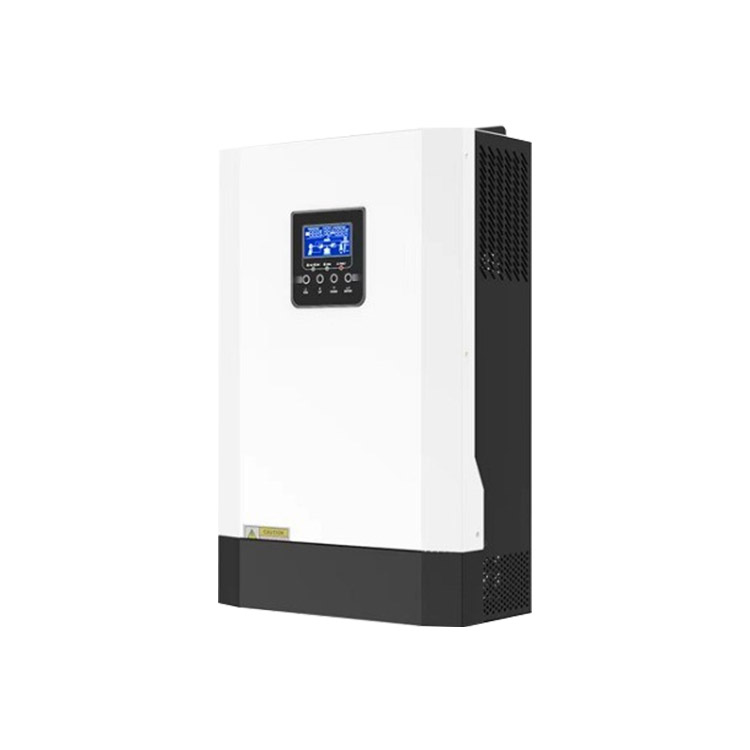

SOLAR INVERTER

Smart LCD setting working modesCharge Current Charge voltage, etc.
Built-in MPPT solar charge controller
MPPTefficiency max98%
Powerful charge rate up to140Amp
WIFI USB monitoring function(wi-fi optional)

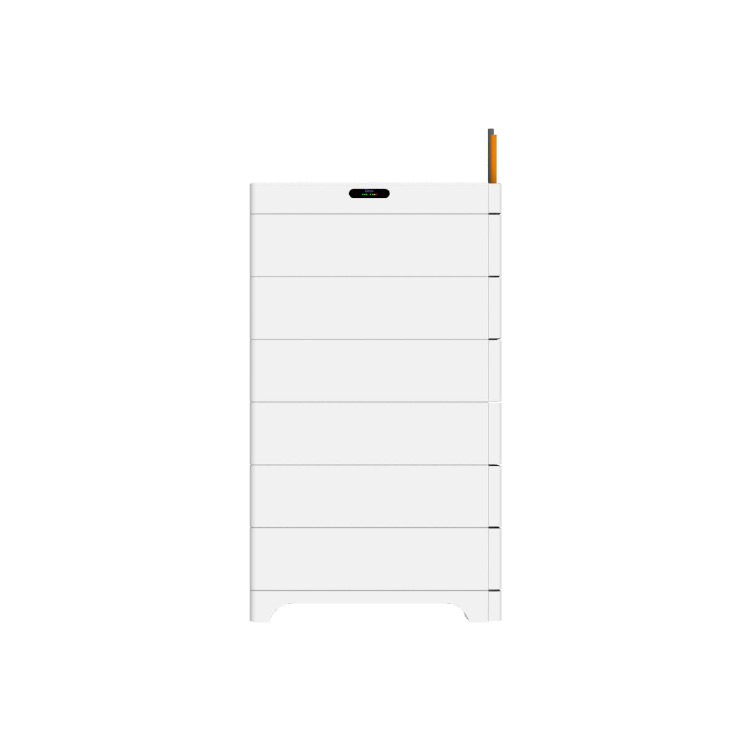

BATTERY BANK

12V/24V/48V Battery Optional
Lead Acid/Gel Deep Cycle Battery
Fast Installation & Convenient Design
Large Capacity, High discharge performance
